Insulating Span 300
Insulating Span 300 Narrow Fiberglass Scaffold Tower
A narrow 28.7-inch insulating fiberglass scaffold family with 78.7- or 98.4-inch platform lengths, 11.8-inch rung spacing, and configurations up to 26.2 feet.
Non-conductive materialCorrosion resistantNationwide support
Purpose-built accessConfigured around the task, site and complete system
Insulating Towers / Insulating Span 300
Insulating Span 300 Tower
Purpose-focused narrow access for electrically sensitive work, with two platform lengths and an approximately 28.7-inch frame width.
Fiberglass constructionMobile configurationQuote-specific U.S. supply
Request Configuration & PricingFinal capacity, tower height, components, color, regulatory suitability and availability are confirmed during quoting.
Technical overview
Product specifications
Imperial dimensions are rounded conversions from source metric measurements.
- Series
- Insulating Span 300
- Frame width
- 28.7 in
- Deck length
- 78.7 or 98.4 in
- Frame section heights
- Configurable to 26.2 ft
- Transom spacing
- 11.8 in
- Tube outside diameter
- Confirm with quote
- Material
- Fiberglass
- Mobility

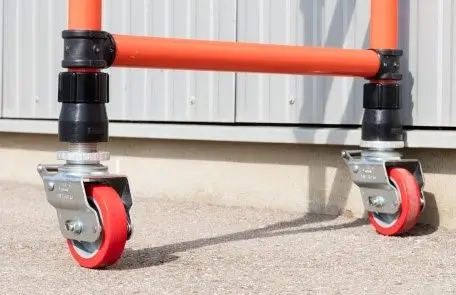

- Caster-equipped
- Shown color
- Orange / Red
- Availability
- Request a Quote
Common applications
Where this configuration fits
Selection requires a competent review of the complete system, work task, site conditions and applicable U.S. requirements.
Power distribution
Discuss the environment, access constraints and required working height with our product team.
Substations
Discuss the environment, access constraints and required working height with our product team.
Electrically sensitive facilities
Discuss the environment, access constraints and required working height with our product team.
How to configure it
Build around the access problem
This family is differentiated by its narrow frame and source insulating-system designation. Electrical work practices, approach boundaries and U.S. requirements remain independent project obligations.
Discuss this configuration →What distinguishes this family
✓Narrow 28.7-inch frame
✓11.8-inch rung spacing
✓Two platform lengths
✓Electrically sensitive applications
Configuration matrix
Available source dimensions
Measurements below are rounded imperial conversions. A quote confirms the exact component package supplied for the United States.
Frame width28.7 in
Platform or deck length78.7 or 98.4 in
Height rangeConfigurable to 26.2 ft
Rung spacing11.8 in
Shown colorOrange / Red
MobilityCaster-equipped
Product-specific answers
Insulating Span 300 Tower FAQs
These answers distinguish verified source specifications from requirements that must be confirmed for U.S. supply.
Does “insulating” replace electrical safety procedures?
No. Scaffold material and source product designation never replace de-energization, approach boundaries, PPE, hazard assessment or other required procedures.
What platform lengths are available?
The family lists approximately 78.7- and 98.4-inch platform lengths.
Are IEC or European certifications U.S. approval?
No. International or European source certifications must not be represented as OSHA or ANSI approval. Project suitability must be confirmed separately.
Compare configurations
Related fiberglass products
2600 Series
Narrow-Width Mobile Tower
A compact 27.6-inch frame width for restricted work zones, paired with a 94.5-inch deck and configurable 39.4- or 59.1-inch frame sections.
- Width
- 27.6 in
- Deck
- 94.5 in
- Color
- Orange / Red
2600 Series
Double-Width Mobile Tower
A stable 47.2-inch frame width with a 94.5-inch deck and configurable 39.4- or 59.1-inch frame sections for larger work areas.
- Width
- 47.2 in
- Deck
- 94.5 in
- Color
- Orange / Red
Span 500
Integrated-Ladder Span 500 Tower
Integrated ladder access and 19.7-inch rung spacing with 78.7- or 98.4-inch platform lengths and narrow or double-width configurations.
- Width
- 33.5 or 57.1 in
- Deck
- 78.7 or 98.4 in
- Color
- Yellow
Answers before you quote
Fiberglass scaffold FAQs
Clear answers help teams evaluate fit, collect the right project details and begin a productive conversation.
Ask a QuestionDoes “insulating” replace electrical safety procedures?
No. Scaffold material and source product designation never replace de-energization, approach boundaries, PPE, hazard assessment or other required procedures.
What platform lengths are available?
The family lists approximately 78.7- and 98.4-inch platform lengths.
Are IEC or European certifications U.S. approval?
No. International or European source certifications must not be represented as OSHA or ANSI approval. Project suitability must be confirmed separately.
Need the right configuration?
Tell us about the work—not just the height.
Share the application, footprint, environment and access requirements. We’ll help identify a practical next step.
